3.6Kw/11Kw Type 2 to Type 2 EV Charging Cable

3.6Kw/11Kw Type 2 to Type 2 EV Charging Cable

Application: Audi, BMW, Hyundai, Jaguar, KIA, Mercedes, Mini, Nissan, Porsche, Rensult, SmartEQ, Tesla, Toyota, Volkswagen, Volvo

Main Advantage

  • Free design
    EV products are all designed by experts in electric vehicles and customer has any ideas or comments about products, show us your creativity and we have professional charger designer to assist you to complete.
  • Making samples
    Always making any samples to meet customers’ requirements. we can produce by your samples or technical drawings and can build the molds and fixtures.
  • Full customisable

Introduction

Mobile AC charging cable with Vehicle Connector and Infrastructure plug for charging electric vehicles (EV) with alternating current (AC), via type 1 Vehicle Inlets, compatible with type 1 Infrastructure Socket Outlets at charging stations for E-Mobility (EVSE).

type2 EV Charging Cable-3.webp

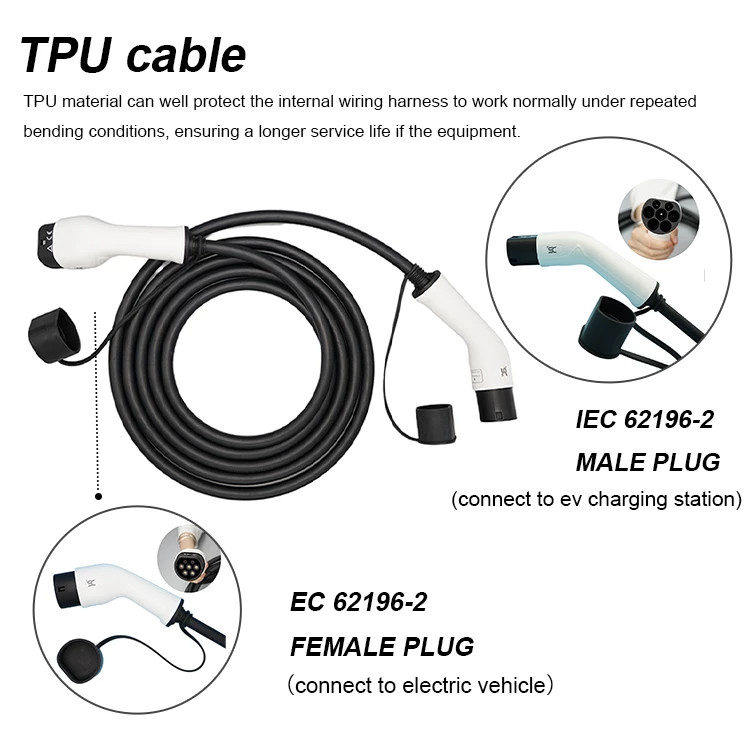

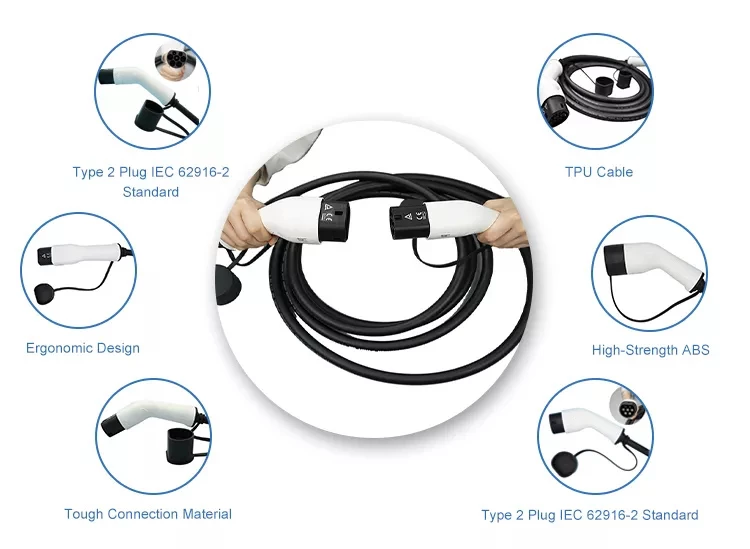

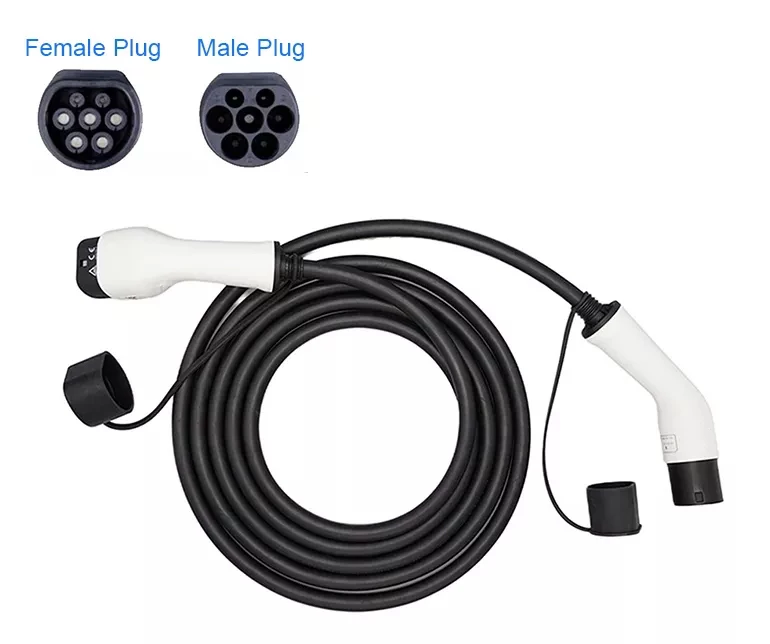

IEC62196-2 type2 to type2 ev charging cable connectors

  • 3.6kw, 7.2kw ,11kw, 22kw with 5m black white cable, or customized, meet IEC 62196-2 standard
  • Higher safety level, support outdoor using
  • Authoritatively certificated from CE, CCC, ROHS and so on
  • 1-year warranty for after-sale service
  • Customized service on LOGO, length, color and inner box


Features

  • Free design
    EV products are all designed by experts in electric vehicles and customer has any ideas or comments about products, show us your creativity and we have professional charger designer to assist you to complete.
  • Making samples
    Always making any samples to meet customers’ requirements. we can produce by your samples or technical drawings and can build the molds and fixtures.
  • Full customisable
    Our normal cables are available from 5m to 50m in length. And certainly the color and length of cable and the logo of charger we also can make customized.
  • Price advantage
    Supplying you with high quality yet price friendly products is the sales concept of our company.
  • Quote quickly
    24 hours online. If any inquiry you have, please feel free to contact us any time. And we have professional quotation team, and build a quotation system.
  • Delivery date
    Generally, it will take 3 to 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

3.6Kw/11Kw Type 2 to Type 2 EV Charging Cable

3.6Kw/11Kw Type 2 to Type 2 EV Charging Cable

Parameters of 3.6Kw/11Kw Type 2 to Type 2 EV Charging Cable

Technical Specification
Mechnical life  no-load   plug in/out >10000 times
Coupled insertion force 45N<F<100N
Impact of internal force afford   1m drop and 2T vehicle run over pressure
Rated current 16A/32A
Operation voltage 250V/480V
Insulation resistance >1000MΩ   (DC500V)
Terminal temperature rise <50K
Withstand voltage 2000V
Contact resistance 0.5mΩ   max
Operating temperature -30℃~50℃
Protection Degree IP54   (Protective cap); IP44 (plugged in)
Shell Thermoplastic,   flame retardant grade UL94 V-0
Terminal Copper   alloy, silver plated
Model Plug Standard Current Phase Power
SC-EVC-001 Type2 To Type2 16A 1 Phase 3.6KW
SC-EVC-002 Type2 To Type2 16A 3 Phase 11KW
SC-EVC-003 Type2 To Type2 32A 1 Phase 7.2KW
SC-EVC-004 Type2 To Type2 32A 3 Phase 22KW
Rated Current Cable Specifification Shell and cable
16A Single Phase 3×2.5mm²+2×0.5mm² Shell color: black white optional
Cable color: black orange optional
16A Three Phase 5×2.5mm²+2×0.5mm²
32A Single Phase 3x6mm²+2×0.5mm²
32A Three Phase 5x6mm²+2×0.5mm²
