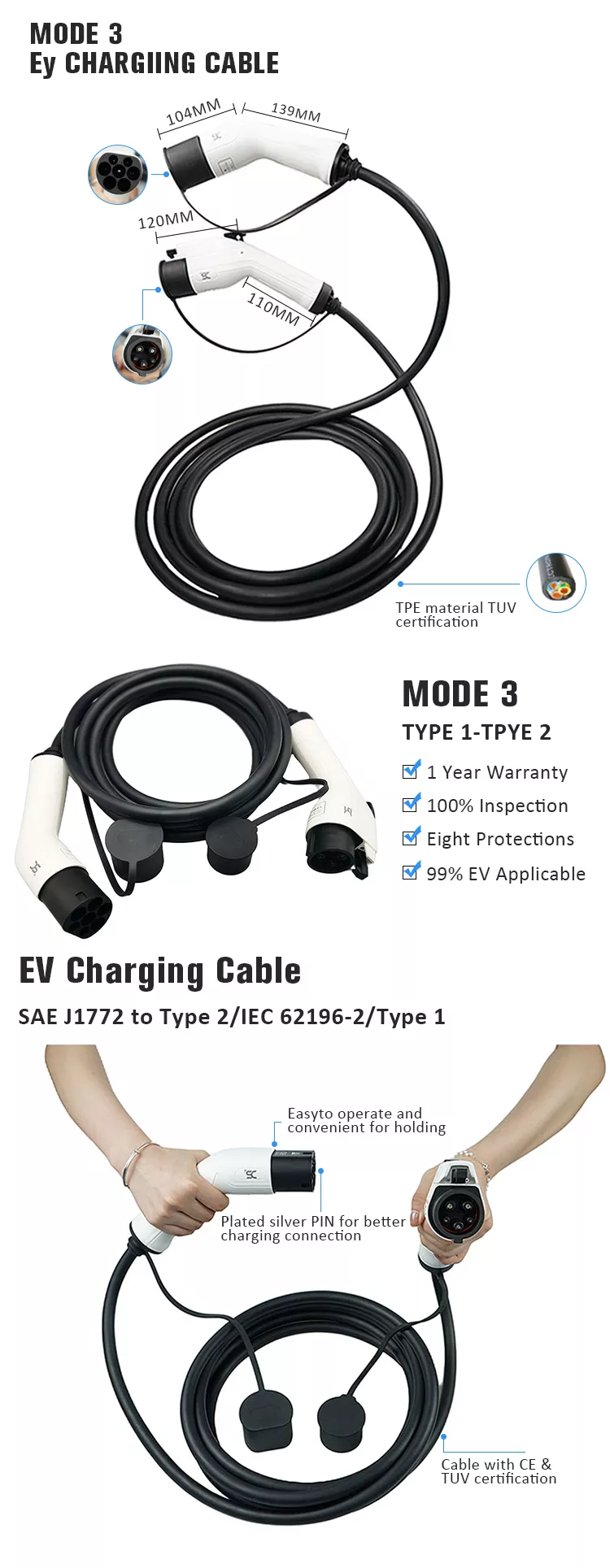

3.6Kw/7.2Kw Type 2 to Type 1 EV Charging Cable

3.6Kw/7.2Kw Type 2 to Type 1 EV Charging Cable

Mobile AC charging cable with Vehicle Connector and Infrastructure plug for charging electric vehicles (EV) with alternating current (AC), via type 1 Vehicle Inlets, compatible with type 1 Infrastructure Socket Outlets at charging stations for E-Mobility (EVSE).

Main Advantage

  • Safety Assurance
    Already passed all tests of TUV & CE. There are all kinds of protective measures to ensure the safety of every user.
  • High quality cables
    TPU cables make the charging cable itself smaller in size and easier to charge.
  • Quick & Easy Operation
    Simply connect the plug with the EV’s inlet, and then the charger will automatically detect the connection status and handshaking protocol to starts charging.

Introduction

Mobile AC charging cable with Vehicle Connector and Infrastructure plug for charging electric vehicles (EV) with alternating current (AC), via type 1 Vehicle Inlets, compatible with type 1 Infrastructure Socket Outlets at charging stations for E-Mobility (EVSE).

3.6Kw/7.2Kw Type 2 to Type 1 EV Charging Cable

Features

  • Safety Assurance
    Already passed all tests of TUV and CE. There are all kinds of protective measures to ensure the safety of every user.
  • High quality cables
    Teison TPU cables make the charging gun itself smaller in size and easier to charge.
  • Quick and Easy Operation
    Simply connect the plug with the EV’s inlet, and then the charger will automatically detect the connection status and handshaking protocol to starts charging.
  • Intelligent Chip
    Automatically repairing minor charging problems while charging.

Packaging

3.6Kw/7.2Kw Type 2 to Type 1 EV Charging Cable

Type 2 to Type 1 32A EV Charging Cable

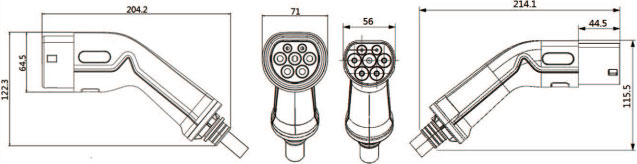

Parameters of 3.6Kw/7.2Kw Type 2 to Type 1 EV Charging Cable

Technical Specification
Mechnical life  no-load   plug in/out >10000 times
Coupled insertion force 45N<F<80N
Impact of internal force afford   1m drop and 2T vehicle run over pressure
Rated current 16A/32A
Operation voltage 250V
Insulation resistance >1000MΩ   (DC500V)
Terminal temperature rise <50K
Withstand voltage 2000V
Contact resistance 0.5mΩ   max
Operating temperature -30℃~50℃
Protection Degree IP54   (Protective cap); IP44 (plugged in)
Shell Thermoplastic,   flame retardant grade UL94 V-0
Terminal Copper   alloy, silver plated
Model Plug Standard Current Phase Power
SC-EVC-001 Type2 To Type2 16A 1 Phase 3.6KW
SC-EVC-002 Type2 To Type2 16A 3 Phase 11KW
SC-EVC-003 Type2 To Type2 32A 1 Phase 7.2KW
SC-EVC-004 Type2 To Type2 32A 3 Phase 22KW
SC-EVC-005 Type1 To Type2 16A 1 Phase 3.6KW
SC-EVC-006 Type1 To Type2 32A 1 Phase 7.2KW
Rated Current Cable Specifification Shell and cable
16A Single Phase 3×2.5mm²+2×0.5mm² Shell color: black white optional
Cable color: black orange optional
16A Three Phase 5×2.5mm²+2×0.5mm²
32A Single Phase 3x6mm²+2×0.5mm²
32A Three Phase 5x6mm²+2×0.5mm²

For detailed information and bulk orders, you can send an e-mail to info@adozmuhendislik.com.
